ANNKE 5MP Analog HD Security Camera With 2.8mm Lens
ANNKE 5MP Analog HD Security Camera With 2.8mm Lens
Couldn't load pickup availability

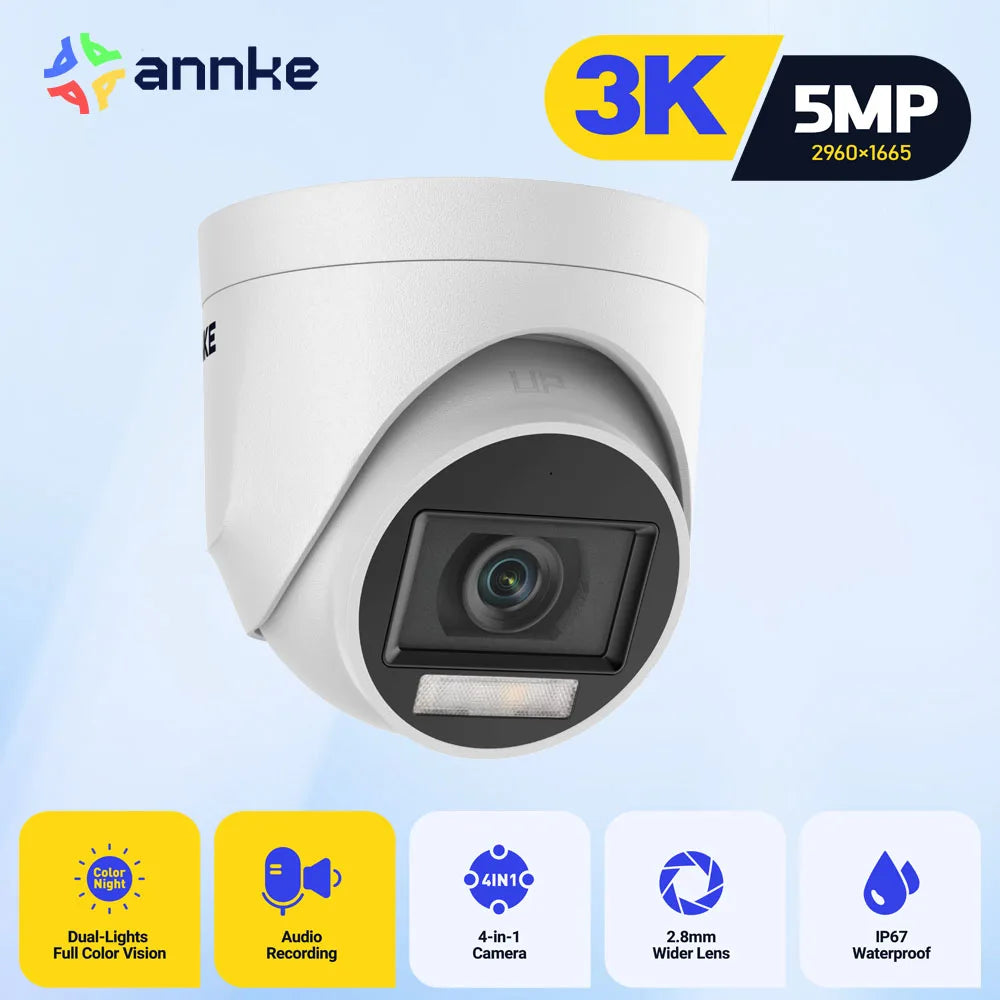

IP67-rated 5MP analog HD camera delivers 2960×1665 video with a 2.8 mm fixed lens for broad, reliable coverage.
- You get a 3K CMOS sensor delivering 2960×1665 resolution (16:9) across TVI/AHD/CVBS/CVI with a fixed 2.8 mm lens.

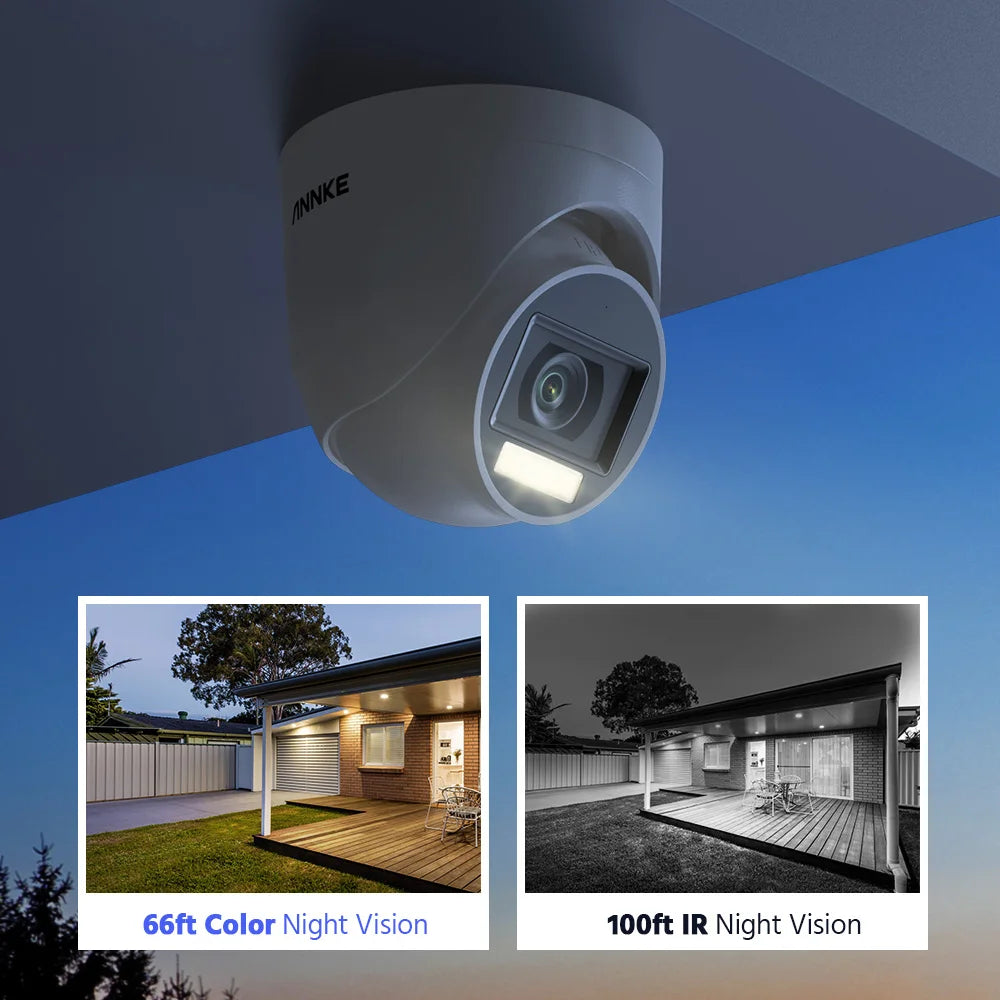

- You’ll enjoy low-light clarity: color at 0.01 lux (F1.2, AGC ON) with IR Cut Filter; IR up to 25 m and white-light up to 20 m.

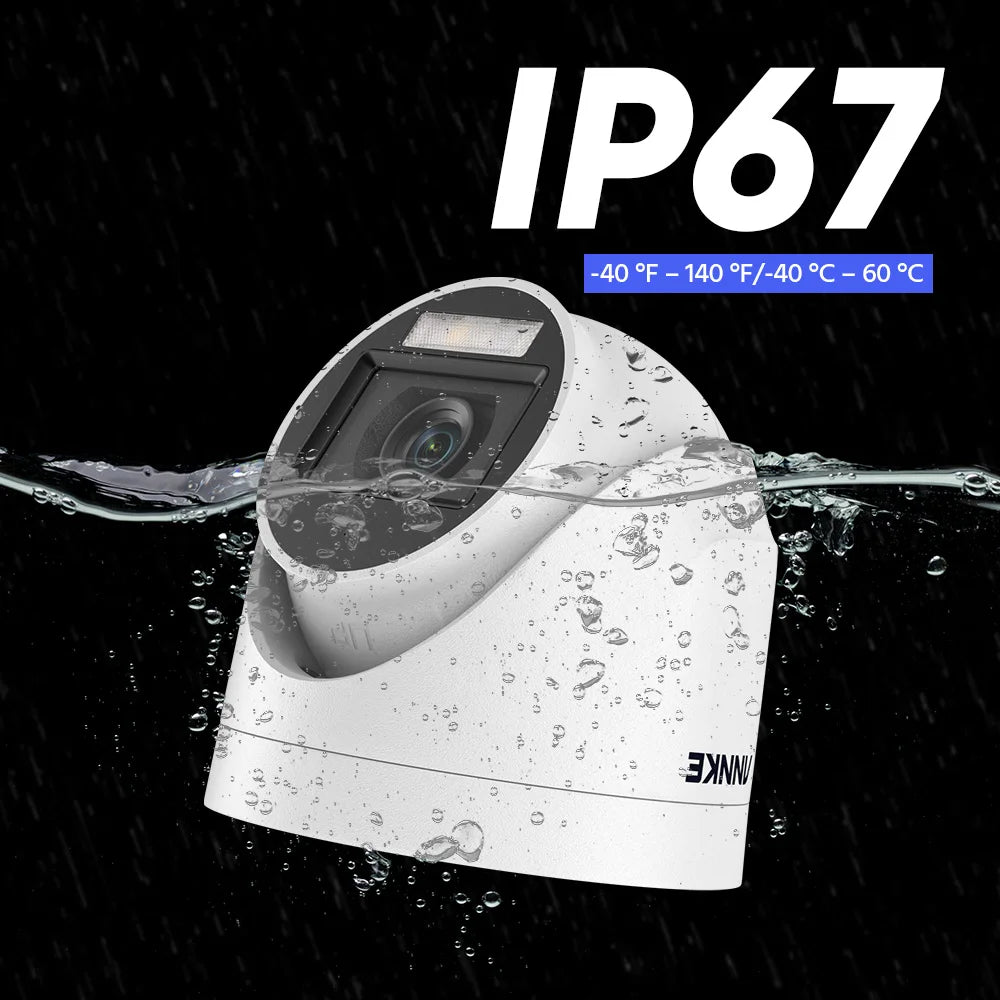

- You can use it indoors or outdoors with an IP67 enclosure and an operating range from -40°C to 60°C.
- You connect via BNC output with four-format switching (TVI/AHD/CVBS); 12 VDC ±25%, max 2.9 W; built-in mic with audio over coax; compatible only with DW81KD-V6 or DW61LD-V6 (no third-party DVRs).
Analog HD Camera | ||
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|
Supplement Light type |
1 white Light & 2 EXIR |
|
Supplement Light Range |
IR: Up to 25 m, white Light: Up to 20 m |
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
Wide Dynamic Range |
Digital WDR |
|
Audio |
Built-in mic |
|
IR Cut Filter |
Yes |
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
General |
Housing |
Plastic |
Color |
White |
|
Operating Power |
12 VDC ± 25% |
|
Consumption |
Max. 2.9 W |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") |
|
Weight |
Approx. 155 g (0.34 lb.) |
|
